Chapter 7 Complete Workflow:
Identifying Proteomic Signatures in Lupus and Rheumatoid Arthritis

7.1 Overview

Differential expression analysis is a critical component of proteomic studies, enabling researchers to identify proteins that are significantly expressex between experimental conditions. In this chapter, we demonstrate a complete differential expression workflow using the NULISAseq Inflammation Panel to compare inflammatory diseases against healthy controls.

We’ll analyze a dataset containing samples from patients with:

  • Systemic Lupus Erythematosus (SLE): An autoimmune disease where the immune system attacks its own tissues, causing widespread inflammation and tissue damage
  • Rheumatoid Arthritis (RA): A chronic inflammatory disorder primarily affecting joints, but potentially involving other organ systems
  • Normal controls: Healthy individuals without inflammatory disease

This workflow will cover data import, target detectability filtering, visualization of target expression, statistical testing, and interpretation of disease-specific protein signatures.

7.2 Data Preparation

7.2.1 Load Required Libraries

library(NULISAseqR)
library(tidyverse)

7.2.2 Import Data

We begin by importing the NULISAseq data file:

data_dir <- system.file("extdata", package = "NULISAseqR")
data.a <- importNULISAseq(files = file.path(data_dir, "Inflammation_250_RQ_demo_2025-05-20-Lab-A.xml"))
#> Using single IC to normalize data.

Preview NPQ Long Data Frame

#> Preview of NPQ long data frame (first 20 rows):

Preview NPQ Wide Data Matrix

#> Preview of NPQ matrix (first 10 proteins × 10 samples, rounded to 3 digits):

7.2.3 Prepare Sample Metadata

Next, we extract and prepare the sample metadata, filtering for experimental samples and setting the reference level for the Disease variable:

metadata.a <- data.a$merged$samples %>%
  filter(sampleType == "Sample") %>%
  mutate(Disease = relevel(Disease, ref = "normal"))

# Sample counts per group
n_normal <- sum(metadata.a$Disease == "normal")
n_sle <- sum(metadata.a$Disease == "lupusSle")
n_ra <- sum(metadata.a$Disease == "rheumatoidArthritis")

# Display sample distribution
table(metadata.a$Disease)
#>
#>              normal            lupusSle rheumatoidArthritis
#>                  19                  12                  12

The relevel() function is important here as it sets “normal” as the reference group for all subsequent statistical comparisons. This means our differential expression results will show changes in diseased samples relative to healthy controls.

Preview Metadata Data Frame

#> Preview of metadata data frame:

7.3 Apply Detectability Threshold

Preview Detectability Table

#> Preview of detectability table:


To ensure robust statistical analysis, we filter proteins based on the detectability across samples. We use a 50% detectability threshold for plasma samples, meaning a target must be detected in at least 50% of samples to be included:

detectability_threshold <- 0.5
targets_passed <- data.a$merged$detectability %>%
  filter(`plasma (n = 43)` > 50) %>%
  pull(Target)

# Identify excluded targets
excluded_targets <- setdiff(rownames(data.a$merged$Data_NPQ), targets_passed)
cat("Number of targets excluded:", length(excluded_targets), "\n")
#> Number of targets excluded: 5
cat("Targets excluded:", paste(excluded_targets, collapse = ", "), "\n")
#> Targets excluded: CNTF, CTSS, IFNW1, IL11, IL32

7.4 Global Data Visualization

Before performing differential expression analysis, we examine the overall structure of the data using unsupervised visualization methods.

7.4.1 Prepare Metadata for Visualization

First, we clean up the metadata labels for better plot readability:

metadata_rename <- metadata.a %>%
  mutate(Disease = case_when(
    Disease == "lupusSle" ~ "SLE",
    Disease == "rheumatoidArthritis" ~ "RA",
    TRUE ~ "Normal"
  ),
  `Sample Matrix` = tolower(SAMPLE_MATRIX)
  )

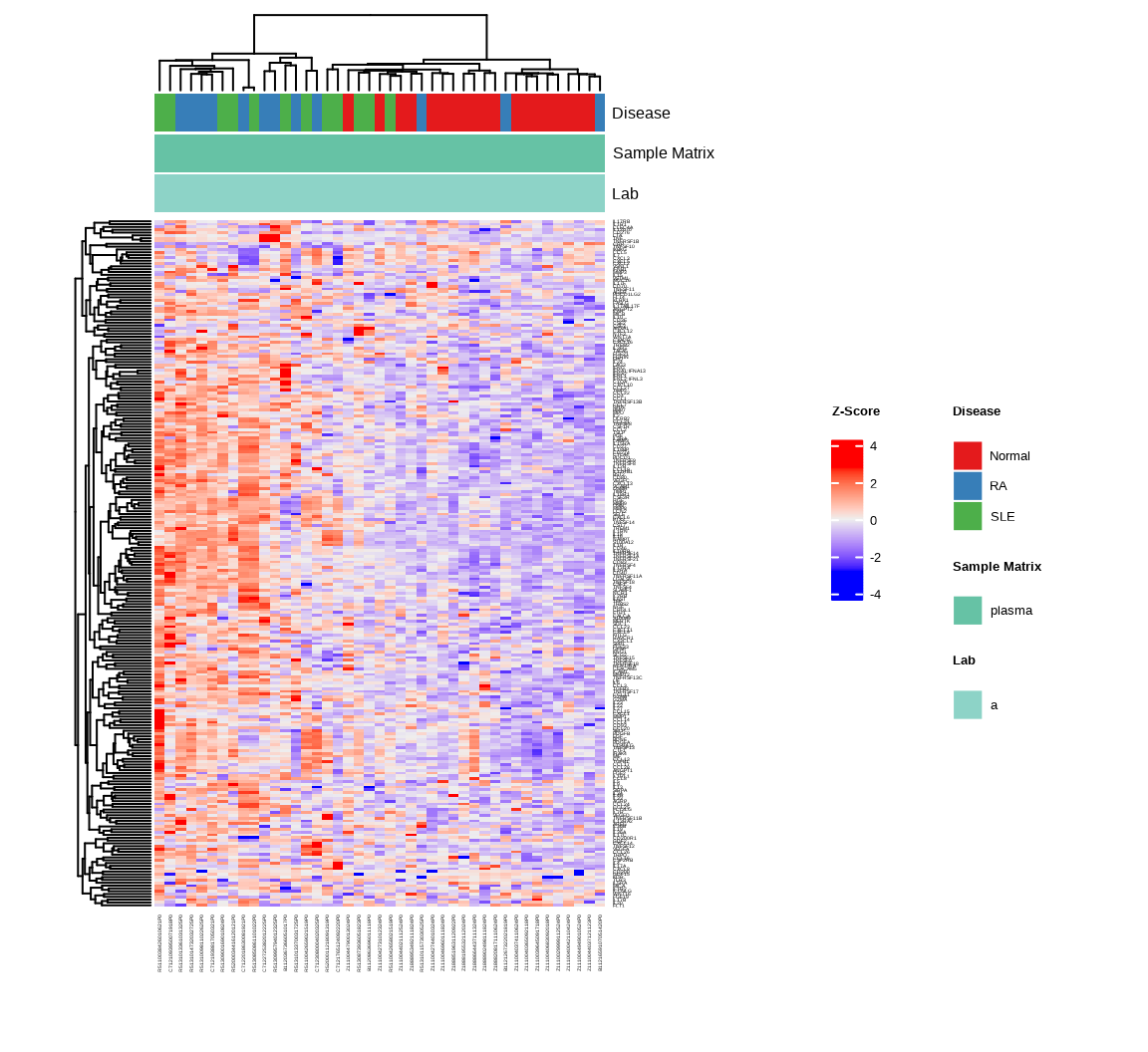

7.4.2 Hierarchical Clustering Heatmap

The heatmap provides a global view of protein expression patterns across all samples and identifies natural groupings:

h <- generate_heatmap(data = data.a$merged$Data_NPQ,
                      sampleInfo = metadata_rename,
                      sampleName_var = "sampleName",
                      sample_subset = metadata_rename$sampleName,
                      target_subset = targets_passed,
                      annotate_sample_by = c("Disease", "Sample Matrix", "Lab"))

Interpretation: The heatmap shows hierarchical clustering of both samples (columns) and proteins (rows). Look for:

  • Clustering of samples by disease type (indicated by the annotation bars)
  • Groups of proteins with similar expression patterns

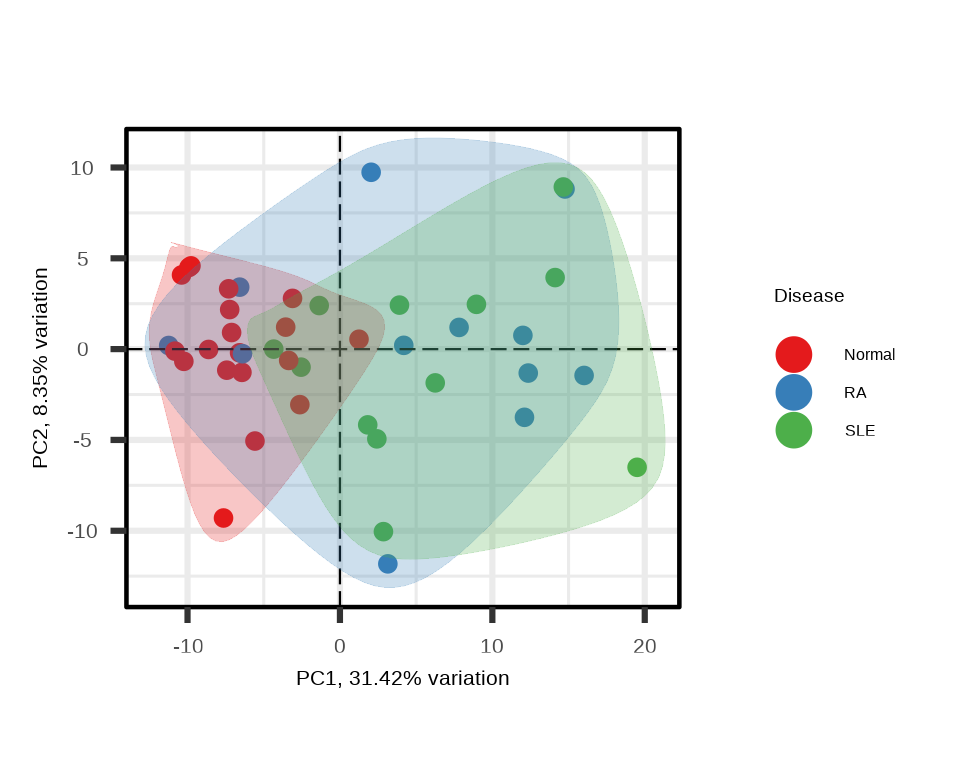

7.4.3 Principal Component Analysis

PCA shows the clustering of samples by groups in reduced dimensional space, highlighting variance in the dataset:

p <- generate_pca(data = data.a$merged$Data_NPQ,
                  sampleInfo = metadata_rename,
                  sampleName_var = "sampleName",
                  sample_subset = metadata_rename$sampleName,
                  target_subset = targets_passed,
                  annotate_sample_by = "Disease")

Interpretation: In the PCA plot:

  • Each point represents a sample
  • Distance between points reflects similarity in overall protein expression
  • Good separation between disease groups suggests distinct proteomic signatures
  • PC1 and PC2 percentages indicate how much variation each component explains

7.5 Statistical Testing

We perform linear modeling to identify proteins that are significantly different between disease groups and controls:

lmTest_de <- lmNULISAseq(data = data.a$merged$Data_NPQ[targets_passed, metadata.a$sampleName],
                         sampleInfo = metadata.a,
                         sampleName_var = "sampleName",
                         modelFormula = "Disease")

The lmNULISAseq() function fits a linear model for each protein, testing for differential expression while controlling for multiple comparisons using FDR adjustment.

Model Results

#> Preview of `lmTest_de$modelStats` Results Table (rounded to 3 digits):

For comparing SLE to Normal:

  • target: Target name
  • DiseaselupusSle_coef: Log_2 fold change between SLE and Normal, adjusting for age and sex (Effect size)
  • DiseaselupusSle_pval: Raw p-value
  • DiseaselupusSle_pval_FDR: FDR-adjusted p-value
  • DiseaselupusSle_pval_bonf: Bonferroni-adjusted p-value

7.6 Systemic Lupus Erythematosus (SLE) Analysis

7.6.1 Background

Systemic Lupus Erythematosus is characterized by chronic inflammation affecting multiple organ systems. The immune dysregulation in SLE involves abnormal B and T cell activation, autoantibody production, and inflammatory cytokine release. The proteomic signature of SLE typically shows:

  • Elevated inflammatory cytokines and chemokines
  • Increased acute phase proteins
  • Markers of immune activation
  • Proteins involved in tissue damage and repair

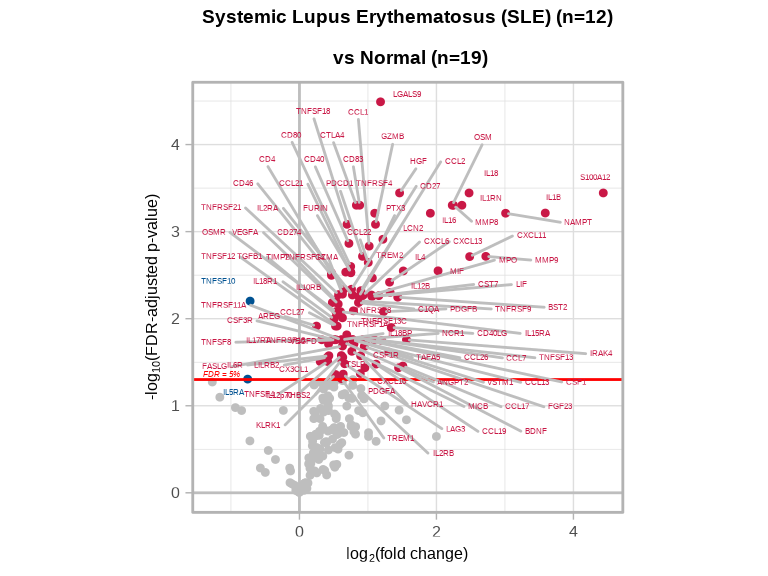

7.6.2 Volcano Plot

The volcano plot visualizes both the magnitude (fold change) and statistical significance of protein changes:

volcanoPlot(coefs = lmTest_de$modelStats$DiseaselupusSle_coef,
            p_vals = lmTest_de$modelStats$DiseaselupusSle_pval_FDR,
            target_labels = lmTest_de$modelStats$target,
            title = paste0("Systemic Lupus Erythematosus (SLE) (n=", n_sle, ") \n vs Normal (n=", n_normal, ")"))

Interpretation:

  • X-axis (coefficient): Log2 fold change; positive values indicate upregulation in SLE
  • Y-axis (-log10 p-value): Statistical significance; higher values = more significant
  • Colored points: Proteins passing the FDR < 0.05 threshold
  • Upper left/right corners: Most significantly changed proteins

7.6.3 Visualizations

Now we examine only the samples and proteins relevant to the SLE comparison:

# Select SLE and normal samples
sle_samples <- metadata.a %>%
  filter(Disease %in% c("normal", "lupusSle")) %>%
  pull(sampleName)

# Identify significantly differential proteins
sig_targets_sle <- lmTest_de$modelStats %>%
  filter(DiseaselupusSle_pval_FDR < 0.05) %>%
  pull(target)

cat("Number of significant targets in SLE:", length(sig_targets_sle), "\n")
#> Number of significant targets in SLE: 102

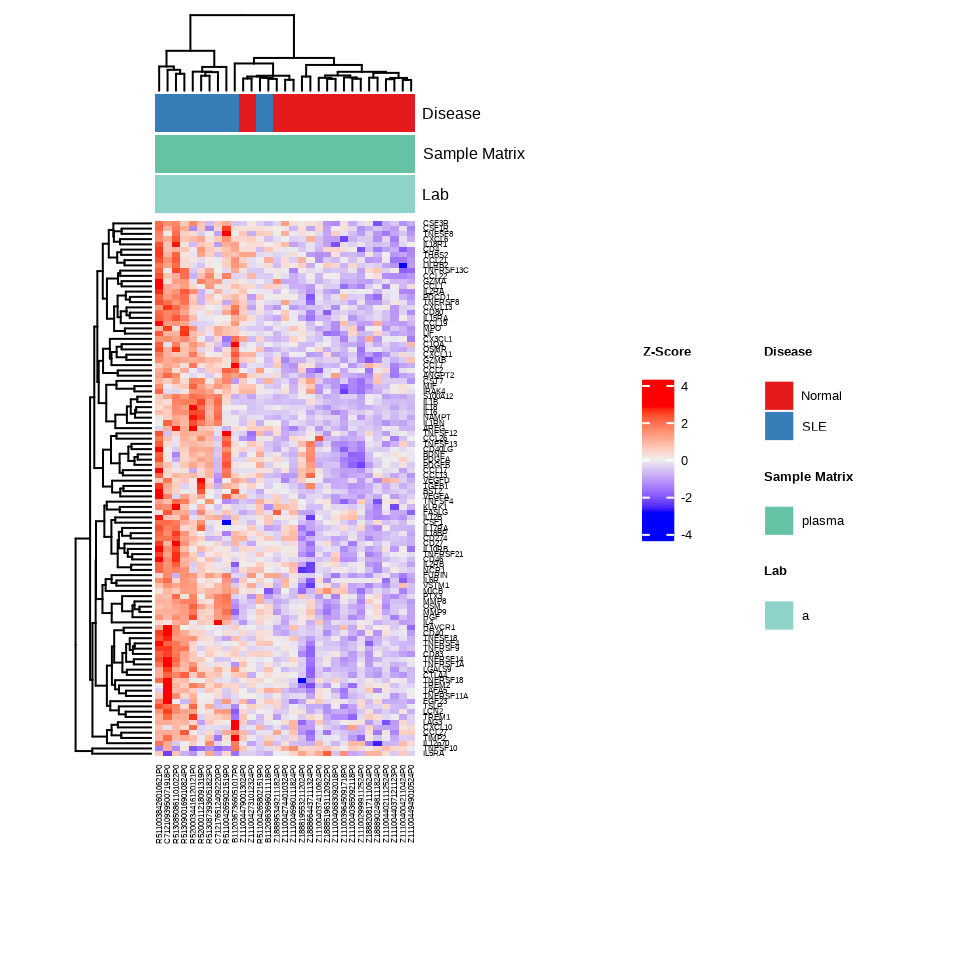

7.6.3.1 SLE-Specific Heatmap

h_sle <- generate_heatmap(data = data.a$merged$Data_NPQ,
                          sampleInfo = metadata_rename,
                          sampleName_var = "sampleName",
                          sample_subset = sle_samples,
                          target_subset = sig_targets_sle,
                          annotate_sample_by = c("Disease", "Sample Matrix", "Lab"),
                         row_fontsize = 6,
                         col_fontsize = 6)

This heatmap focuses exclusively on proteins significantly altered in SLE, making disease-specific patterns more apparent.

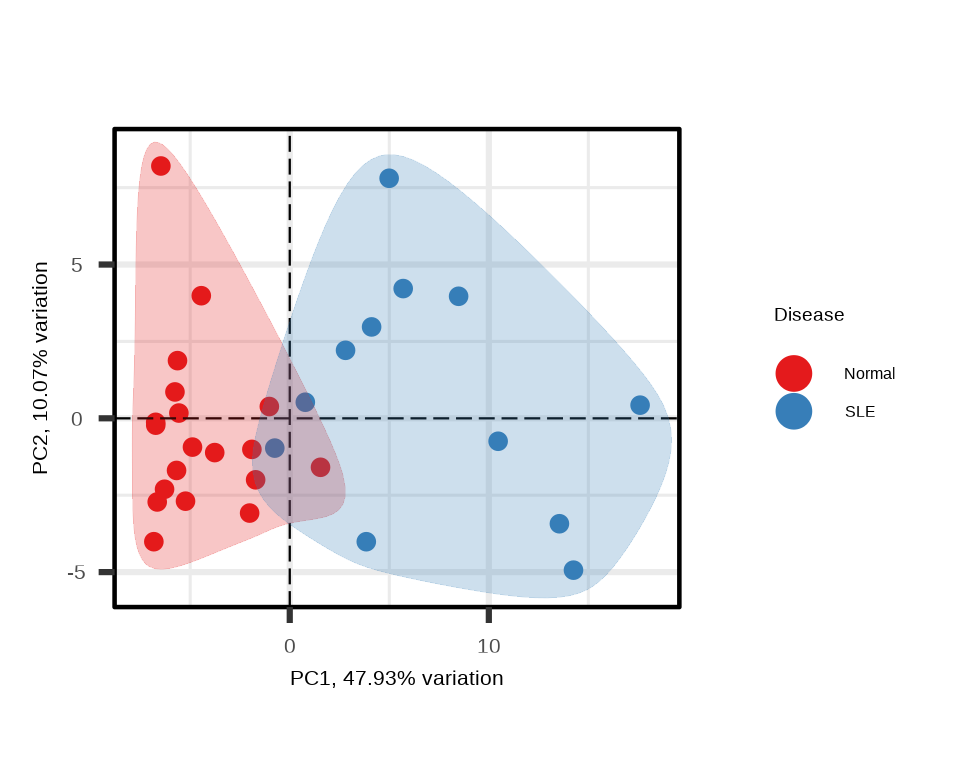

7.6.3.2 SLE-Specific PCA

p_sle <- generate_pca(data = data.a$merged$Data_NPQ,
                      sampleInfo = metadata_rename,
                      sampleName_var = "sampleName",
                      sample_subset = sle_samples,
                      target_subset = sig_targets_sle,
                      annotate_sample_by = "Disease")

Using only significantly differential proteins often enhances separation between groups in PCA.

7.6.4 Directional Analysis

We separate upregulated and downregulated proteins to understand the nature of proteomic changes:

# Upregulated proteins (higher in SLE)
sig_targets_sle_up <- lmTest_de$modelStats %>%
  filter(DiseaselupusSle_pval_FDR < 0.05, DiseaselupusSle_coef > 0) %>%
  pull(target)

# Downregulated proteins (lower in SLE)
sig_targets_sle_down <- lmTest_de$modelStats %>%
  filter(DiseaselupusSle_pval_FDR < 0.05, DiseaselupusSle_coef < 0) %>%
  pull(target)

cat("Upregulated targets:", length(sig_targets_sle_up), "\n")
#> Upregulated targets: 100
cat("Downregulated targets:", length(sig_targets_sle_down), "\n")
#> Downregulated targets: 2
Prepare Long Format Data

We clean up the covariate names in the long data frame for better boxplot readability:

data.long <- data.a$merged$Data_NPQ_long %>%
  mutate(
    `Disease Type` = case_when(
      Disease == "lupusSle" ~ "SLE",
      Disease == "rheumatoidArthritis" ~ "RA",
      TRUE ~ "Normal"
    ))

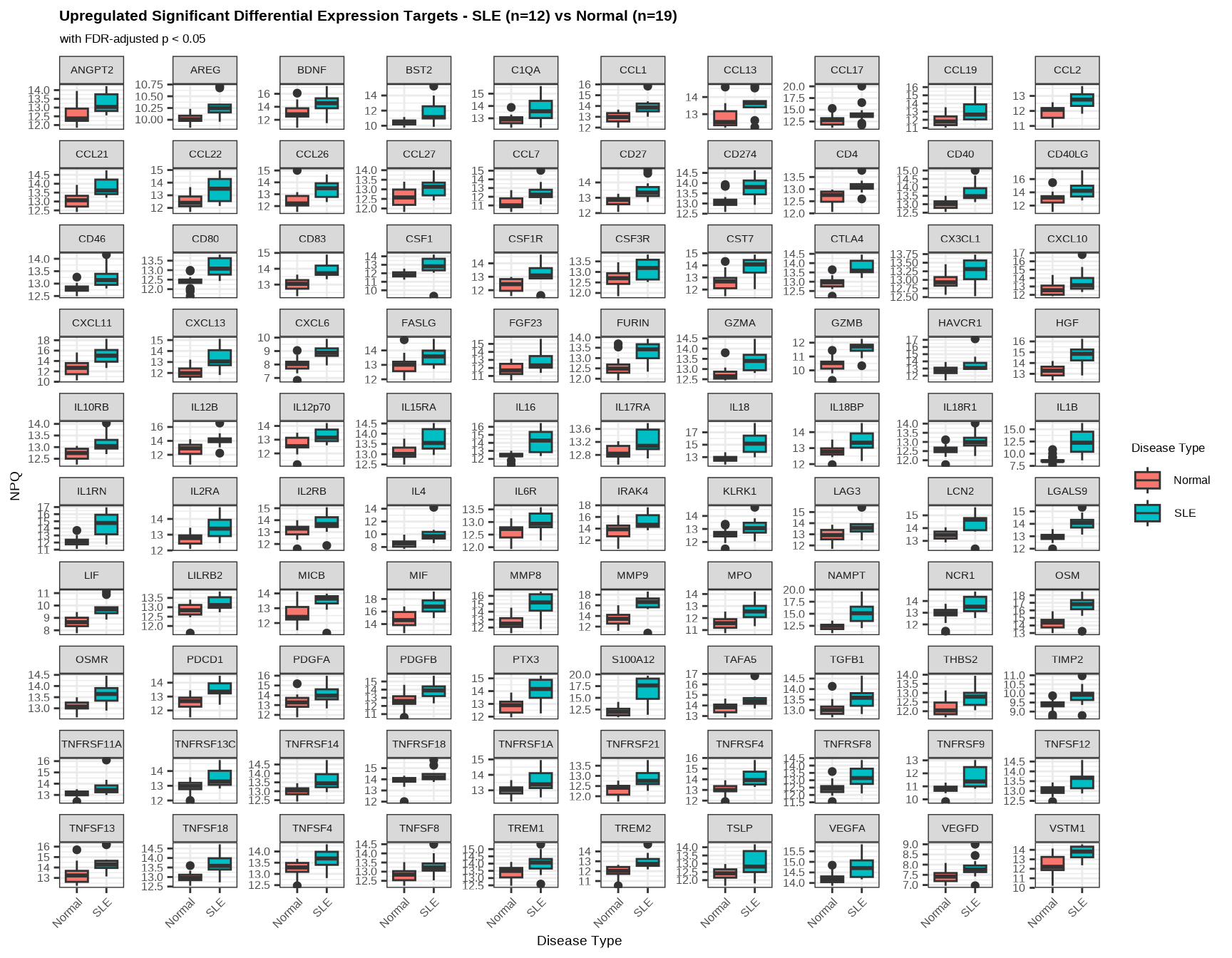

7.6.4.1 Upregulated Proteins in SLE

data.long %>%
  filter(Target %in% sig_targets_sle_up,
         SampleName %in% sle_samples) %>%
  ggplot(aes(x = `Disease Type`, y = NPQ, fill = `Disease Type`)) +
  geom_boxplot() +
  facet_wrap(~ Target, scales = "free_y") +
  labs(title = paste0("Upregulated Significant Differential Expression Targets - SLE (n=", n_sle, ") vs Normal (n=", n_normal, ")"),
       subtitle = "with FDR-adjusted p < 0.05") +
  theme(
    plot.title = element_text(size = 16, face = "bold"),
    plot.subtitle = element_text(size = 13),
    axis.title.x = element_text(size = 14),
    axis.title.y = element_text(size = 14),
    axis.text.x = element_text(size = 12, angle = 45, hjust = 1),
    axis.text.y = element_text(size = 12),
    strip.text = element_text(size = 11),
    legend.title = element_text(size = 13),
    legend.text = element_text(size = 12)
  )

Interpretation: Elevated proteins in SLE may represent:

  • Pro-inflammatory cytokines driving disease pathology
  • Acute phase reactants responding to chronic inflammation
  • Markers of immune cell activation
  • Proteins released from damaged tissues

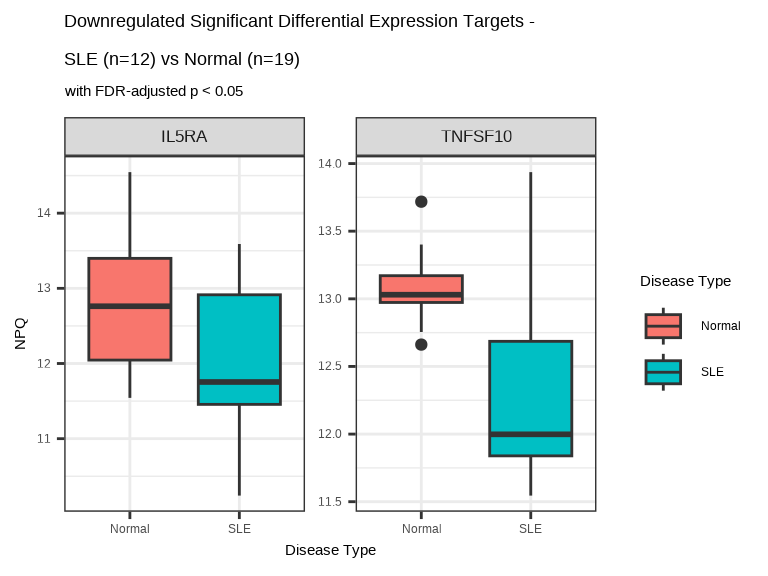

7.6.4.2 Downregulated Proteins in SLE

data.long %>%
  filter(Target %in% sig_targets_sle_down,
         SampleName %in% sle_samples) %>%
  ggplot(aes(x = `Disease Type`, y = NPQ, fill = `Disease Type`)) +
  geom_boxplot() +
  facet_wrap(~ Target, scales = "free_y") +
  labs(title = paste0("Downregulated Significant Differential Expression Targets - \nSLE (n=", n_sle, ") vs Normal (n=", n_normal, ")"),
       subtitle = "with FDR-adjusted p < 0.05") +
  theme(strip.text = element_text(size = 13))

Interpretation: Decreased proteins in SLE might indicate:

  • Consumption of regulatory proteins trying to control inflammation
  • Impaired synthesis due to disease-related metabolic changes
  • Negative acute phase reactants
  • Protective factors depleted in chronic disease

7.7 Rheumatoid Arthritis (RA) Analysis

7.7.1 Background

Rheumatoid Arthritis is a chronic inflammatory disorder that primarily affects synovial joints but can have systemic manifestations. The pathophysiology involves:

  • Autoimmune targeting of joint tissues
  • Synovial inflammation and proliferation
  • Cartilage and bone destruction
  • Systemic inflammation

The proteomic profile of RA often shows markers of:

  • Joint inflammation and damage
  • Systemic inflammatory response
  • Matrix degradation
  • Immune activation

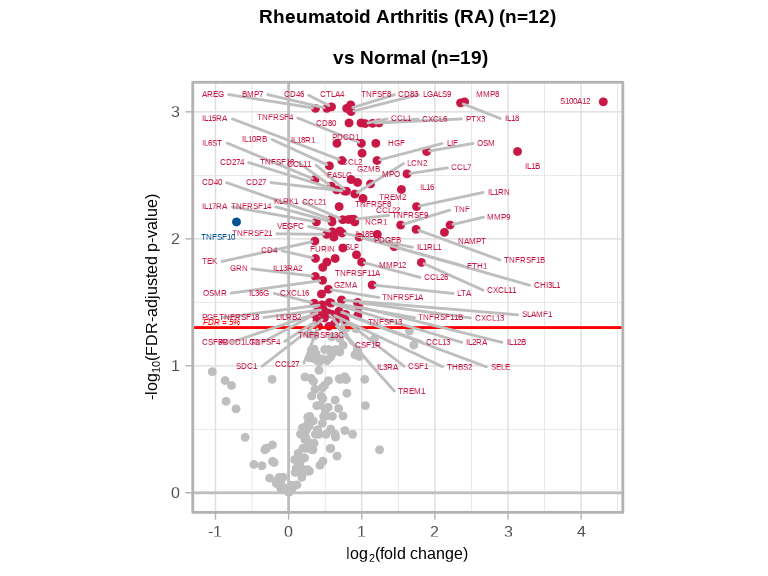

7.7.2 Volcano Plot

volcanoPlot(coefs = lmTest_de$modelStats$DiseaserheumatoidArthritis_coef,
            p_vals = lmTest_de$modelStats$DiseaserheumatoidArthritis_pval_FDR,
            target_labels = lmTest_de$modelStats$target,
            title = paste0("Rheumatoid Arthritis (RA) (n=", n_ra, ") \n vs Normal (n=", n_normal, ")"))

Compare this volcano plot to the SLE plot above. Are there:

  • Proteins significantly changed in both conditions (shared inflammatory pathways)?
  • Disease-specific signatures unique to RA or SLE?
  • Similar magnitude of changes between the two diseases?

7.7.3 Visualizations

# Select RA and normal samples
ra_samples <- metadata.a %>%
  filter(Disease %in% c("normal", "rheumatoidArthritis")) %>%
  pull(sampleName)

# Identify significantly differential proteins
sig_targets_ra <- lmTest_de$modelStats %>%
  filter(DiseaserheumatoidArthritis_pval_FDR < 0.05) %>%
  pull(target)

cat("Number of significant targets in RA:", length(sig_targets_ra), "\n")
#> Number of significant targets in RA: 96

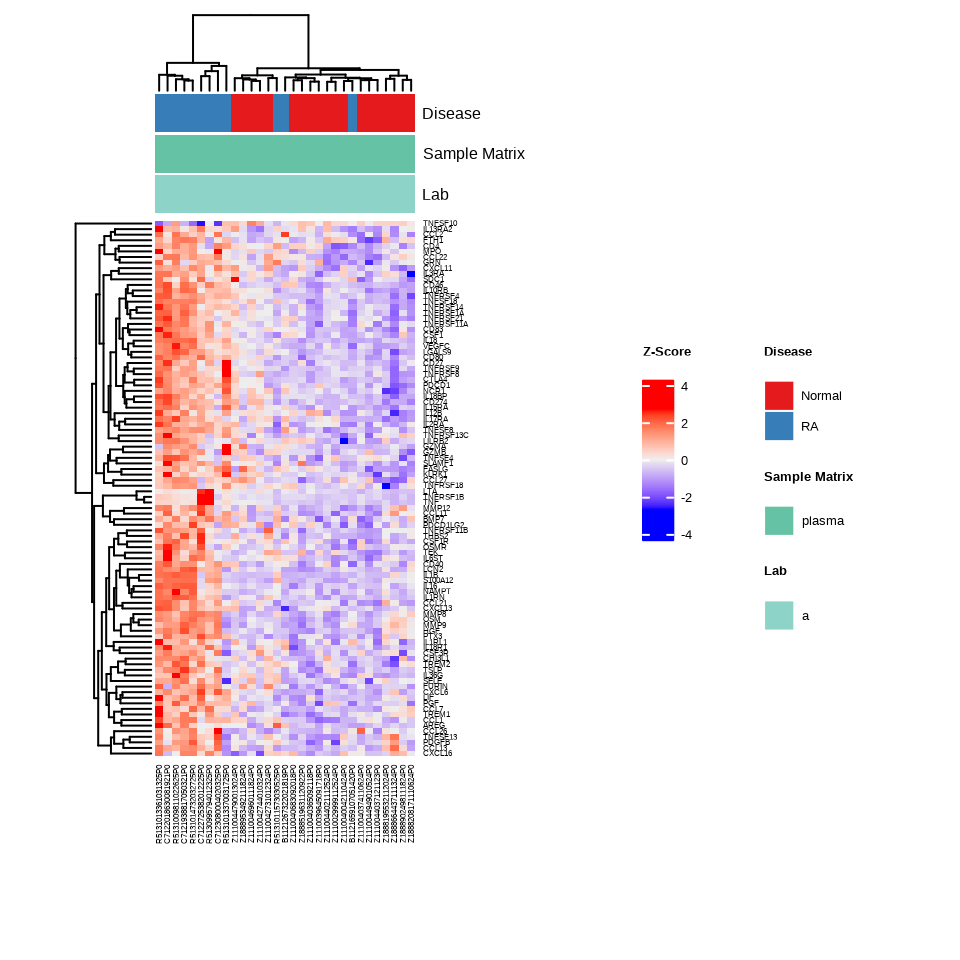

7.7.3.1 RA-Specific Heatmap

h_ra <- generate_heatmap(data = data.a$merged$Data_NPQ,
                         sampleInfo = metadata_rename,
                         sampleName_var = "sampleName",
                         sample_subset = ra_samples,
                         target_subset = sig_targets_ra,
                         annotate_sample_by = c("Disease", "Sample Matrix", "Lab"),
                         row_fontsize = 6,
                         col_fontsize = 6)

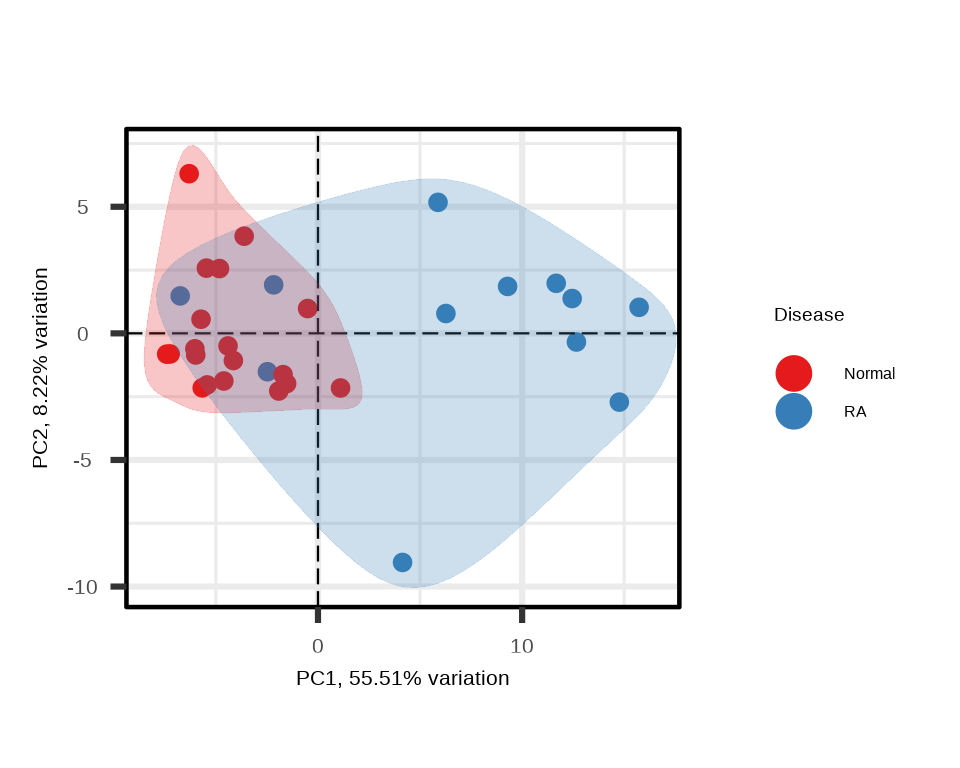

7.7.3.2 RA-Specific PCA

p_ra <- generate_pca(data = data.a$merged$Data_NPQ,
                     sampleInfo = metadata_rename,
                     sampleName_var = "sampleName",
                     sample_subset = ra_samples,
                     target_subset = sig_targets_ra,
                     annotate_sample_by = "Disease")

7.7.4 Directional Analysis

# Upregulated proteins (higher in RA)
sig_targets_ra_up <- lmTest_de$modelStats %>%
  filter(DiseaserheumatoidArthritis_pval_FDR < 0.05,
         DiseaserheumatoidArthritis_coef > 0) %>%
  pull(target)

# Downregulated proteins (lower in RA)
sig_targets_ra_down <- lmTest_de$modelStats %>%
  filter(DiseaserheumatoidArthritis_pval_FDR < 0.05,
         DiseaserheumatoidArthritis_coef < 0) %>%
  pull(target)

cat("Upregulated targets:", length(sig_targets_ra_up), "\n")
#> Upregulated targets: 95
cat("Downregulated targets:", length(sig_targets_ra_down), "\n")
#> Downregulated targets: 1

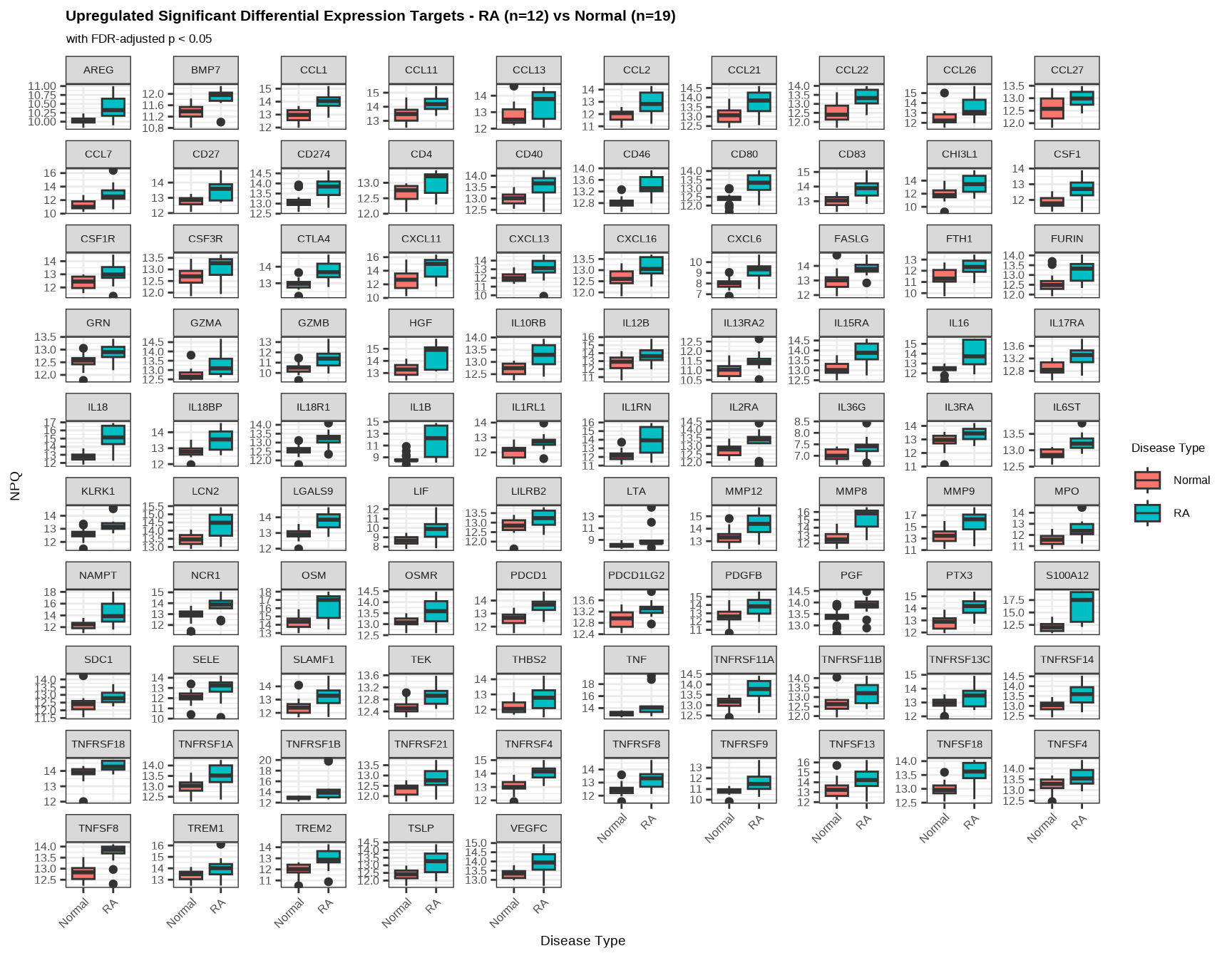

7.7.4.1 Upregulated Proteins in RA

data.long %>%
  filter(Target %in% sig_targets_ra_up,
         SampleName %in% ra_samples) %>%
  ggplot(aes(x = `Disease Type`, y = NPQ, fill = `Disease Type`)) +
  geom_boxplot() +
  facet_wrap(~ Target, scales = "free_y") +
  labs(title = paste0("Upregulated Significant Differential Expression Targets - RA (n=", n_ra, ") vs Normal (n=", n_normal, ")"),
       subtitle = "with FDR-adjusted p < 0.05") +
  theme(
    plot.title = element_text(size = 16, face = "bold"),
    plot.subtitle = element_text(size = 13),
    axis.title.x = element_text(size = 14),
    axis.title.y = element_text(size = 14),
    axis.text.x = element_text(size = 12, angle = 45, hjust = 1),
    axis.text.y = element_text(size = 12),
    strip.text = element_text(size = 11),
    legend.title = element_text(size = 13),
    legend.text = element_text(size = 12)
  )

Interpretation: Elevated proteins in RA may include:

  • Matrix metalloproteinases and other degradative enzymes
  • Inflammatory cytokines (particularly TNF-α pathway members)
  • Proteins involved in bone remodeling
  • Acute phase proteins

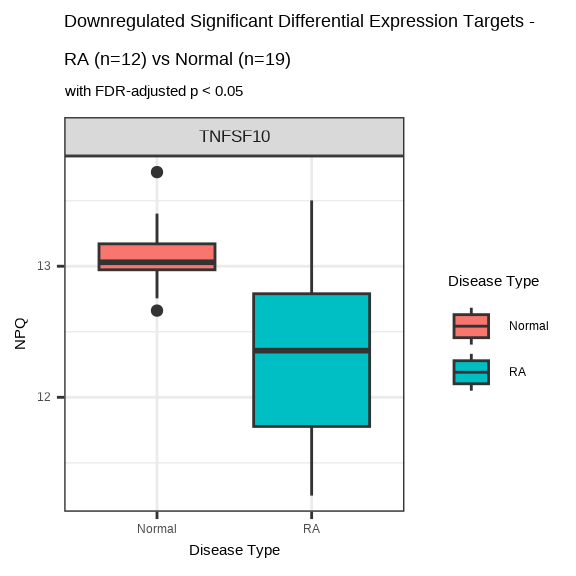

7.7.4.2 Downregulated Proteins in RA

data.long %>%
  filter(Target %in% sig_targets_ra_down,
         SampleName %in% ra_samples) %>%
  ggplot(aes(x = `Disease Type`, y = NPQ, fill = `Disease Type`)) +
  geom_boxplot() +
  facet_wrap(~ Target, scales = "free_y") +
  labs(title = paste0("Downregulated Significant Differential Expression Targets - \nRA (n=", n_ra, ") vs Normal (n=", n_normal, ")"),
       subtitle = "with FDR-adjusted p < 0.05") +
  theme(strip.text = element_text(size = 13))

7.8 Comparing Disease Signatures

7.8.1 Overlap Analysis

To understand shared versus disease-specific biology, we can examine the overlap of significant proteins:

# Proteins significant in both diseases
shared_targets <- intersect(sig_targets_sle, sig_targets_ra)

# Disease-specific proteins
sle_specific <- setdiff(sig_targets_sle, sig_targets_ra)
ra_specific <- setdiff(sig_targets_ra, sig_targets_sle)

cat("Shared significant targets:", length(shared_targets), "\n")
#> Shared significant targets: 73
cat("SLE-specific targets:", length(sle_specific), "\n")
#> SLE-specific targets: 29
cat("RA-specific targets:", length(ra_specific), "\n")
#> RA-specific targets: 23
# Display shared targets if any
if(length(shared_targets) > 0) {
  cat("\nShared targets between SLE and RA:\n")
  cat(paste(shared_targets, collapse = ", "), "\n")
}
#>
#> Shared targets between SLE and RA:
#> AREG, CCL1, CCL13, CCL2, CCL21, CCL22, CCL26, CCL27, CCL7, CD27, CD274, CD4, CD40, CD46, CD80, CD83, CSF1, CSF1R, CSF3R, CTLA4, CXCL11, CXCL13, CXCL6, FASLG, FURIN, GZMA, GZMB, HGF, IL10RB, IL12B, IL15RA, IL16, IL17RA, IL18, IL18BP, IL18R1, IL1B, IL1RN, IL2RA, KLRK1, LCN2, LGALS9, LIF, LILRB2, MMP8, MMP9, MPO, NAMPT, NCR1, OSM, OSMR, PDCD1, PDGFB, PTX3, S100A12, THBS2, TNFRSF11A, TNFRSF13C, TNFRSF14, TNFRSF18, TNFRSF1A, TNFRSF21, TNFRSF4, TNFRSF8, TNFRSF9, TNFSF10, TNFSF13, TNFSF18, TNFSF4, TNFSF8, TREM1, TREM2, TSLP

Biological Interpretation:

  • Shared targets represent common inflammatory pathways activated in both autoimmune conditions
  • Disease-specific targets may reflect unique pathophysiological mechanisms
  • Directional concordance: Check if shared proteins change in the same direction in both diseases

7.8.2 Summary Statistics Table

summary_stats <- data.frame(
  Condition = c("SLE vs Normal", "RA vs Normal"),
  Total_Significant = c(length(sig_targets_sle), length(sig_targets_ra)),
  Upregulated = c(length(sig_targets_sle_up), length(sig_targets_ra_up)),
  Downregulated = c(length(sig_targets_sle_down), length(sig_targets_ra_down))
)
knitr::kable(summary_stats,
             caption = "Summary of Differential Expression Results")
Table 7.1: Summary of Differential Expression Results
Condition Total_Significant Upregulated Downregulated
SLE vs Normal 102 100 2
RA vs Normal 96 95 1

7.9 Next Steps

After identifying differentially expressed proteins, typical follow-up analyses include:

  • Pathway enrichment analysis: Identify biological pathways over-represented in significant proteins
  • Protein network analysis: Understand functional relationships between differential proteins
  • Biomarker evaluation: Assess individual proteins or combinations for diagnostic potential
  • Correlation with clinical variables: Link protein changes to disease severity or outcomes
  • Validation studies: Confirm findings in independent cohorts or using orthogonal methods

7.10 Complete Workflow Example Code

# ============================================================================
# COMPLETE DIFFERENTIAL EXPRESSION WORKFLOW: SLE and RA Analysis
# ============================================================================

# 1. Load libraries and import data
library(NULISAseqR)
library(tidyverse)

data_dir <- system.file("extdata", package = "NULISAseqR")
data.a <- importNULISAseq(files = file.path(data_dir,"Inflammation_250_RQ_demo_2025-05-20-Lab-A.xml"))

# 2. Prepare metadata
metadata.a <- data.a$merged$samples %>%
  filter(sampleType == "Sample") %>%
  mutate(Disease = relevel(Disease, ref = "normal"))

metadata_rename <- metadata.a %>%
  mutate(Disease = case_when(
    Disease == "lupusSle" ~ "SLE",
    Disease == "rheumatoidArthritis" ~ "RA",
    TRUE ~ "Normal"
  ),
  `Sample Matrix` = tolower(SAMPLE_MATRIX))

# Sample counts per group
n_normal <- sum(metadata.a$Disease == "normal")
n_sle <- sum(metadata.a$Disease == "lupusSle")
n_ra <- sum(metadata.a$Disease == "rheumatoidArthritis")

# Display sample distribution
table(metadata.a$Disease)

# 3. Target detectability filtering
detectability_threshold <- 0.5
targets_passed <- data$merged$detectability %>%
  filter(`plasma (n = 43)` > 50) %>%
  pull(Target)

cat("Number of targets passing QC:", length(targets_passed), "\n")

# 4. Run differential expression analysis
lmTest_de <- lmNULISAseq(
  data = data.a$merged$Data_NPQ[targets_passed, metadata.a$sampleName],
  sampleInfo = metadata.a,
  sampleName_var = "sampleName",
  modelFormula = "Disease"
)

# ============================================================================
# SLE ANALYSIS
# ============================================================================

# 5a. Filter significant SLE results
sig_targets_sle <- lmTest_de$modelStats %>%
  filter(DiseaselupusSle_pval_FDR < 0.05) %>%
  pull(target)

sig_targets_sle_up <- lmTest_de$modelStats %>%
  filter(DiseaselupusSle_pval_FDR < 0.05, DiseaselupusSle_coef > 0) %>%
  pull(target)

sig_targets_sle_down <- lmTest_de$modelStats %>%
  filter(DiseaselupusSle_pval_FDR < 0.05, DiseaselupusSle_coef < 0) %>%
  pull(target)

# 6a. Get SLE and normal samples
sle_samples <- metadata.a %>%
  filter(Disease %in% c("normal", "lupusSle")) %>%
  pull(sampleName)

# 7a. Create SLE volcano plot and save as PDF
volcanoPlot(
  coefs = lmTest_de$modelStats$DiseaselupusSle_coef,
  p_vals = lmTest_de$modelStats$DiseaselupusSle_pval_FDR,
  target_labels = lmTest_de$modelStats$target,
  title = paste0("Systemic Lupus Erythematosus (SLE) (n=", n_sle, ") \n vs Normal (n=", n_normal, ")"),
  plot_name = "volcano_plot_sle_vs_normal.pdf",
  data_dir = "figures",
  plot_width = 6,
  plot_height = 5
)

# 8a. Create SLE heatmap and save as PDF
h_sle <- generate_heatmap(
  data = data.a$merged$Data_NPQ,
  sampleInfo = metadata_rename,
  sampleName_var = "sampleName",
  sample_subset = sle_samples,
  target_subset = sig_targets_sle,
  annotate_sample_by = c("Disease", "Sample Matrix", "Lab"),
  output_dir = "figures",
  plot_name = "heatmap_sle_vs_normal.pdf",
  plot_width = 8,
  plot_height = 6
)

# 9a. Create SLE PCA and save as PDF
p_sle <- generate_pca(
  data = data.a$merged$Data_NPQ,
  plot_title = "PCA: SLE vs Normal\nSignificant DE Targets",
  sampleInfo = metadata_rename,
  sampleName_var = "sampleName",
  sample_subset = sle_samples,
  target_subset = sig_targets_sle,
  annotate_sample_by = "Disease",
  output_dir = "figures",
  plot_name = "pca_plot_sle_vs_normal.pdf",
  plot_width = 5,
  plot_height = 4
)

# 10a. Prepare long format data for boxplots
data.long <- data.a$merged$Data_NPQ_long %>%
  mutate(
    `Disease Type` = case_when(
      Disease == "lupusSle" ~ "SLE",
      Disease == "rheumatoidArthritis" ~ "RA",
      TRUE ~ "Normal"
    ))

# 11a. Create upregulated SLE boxplots and save as PDF
boxplot_sle_up <- data.long %>%
  filter(Target %in% sig_targets_sle_up,
         SampleName %in% sle_samples) %>%
  ggplot(aes(x = `Disease Type`, y = NPQ, fill = `Disease Type`)) +
  geom_boxplot() +
  facet_wrap(~ Target, scales = "free_y") +
  labs(title = paste0("Upregulated Significant Differential Expression Targets - SLE (n=", n_sle, ") vs Normal (n=", n_normal, ")"),
       subtitle = "with FDR-adjusted p < 0.05") +
  theme_minimal() +
  theme(strip.text = element_text(size = 11),
        axis.text.x = element_text(angle = 45, hjust = 1))

ggsave(
  filename = "boxplot_sle_upregulated.pdf",
  plot = boxplot_sle_up,
  device = "pdf",
  path = "figures",
  width = 12,
  height = 10
)

# 12a. Create downregulated SLE boxplots and save as PDF
boxplot_sle_down <- data.long %>%
  filter(Target %in% sig_targets_sle_down,
         SampleName %in% sle_samples) %>%
  ggplot(aes(x = `Disease Type`, y = NPQ, fill = `Disease Type`)) +
  geom_boxplot() +
  facet_wrap(~ Target, scales = "free_y") +
 labs(title = paste0("Downregulated Significant Differential Expression Targets - \nSLE (n=", n_sle, ") vs Normal (n=", n_normal, ")"),
       subtitle = "with FDR-adjusted p < 0.05") +
  theme_minimal() +
  theme(strip.text = element_text(size = 11))

ggsave(
  filename = "boxplot_sle_downregulated.pdf",
  plot = boxplot_sle_down,
  device = "pdf",
  path = "figures",
  width = 4,
  height = 3
)

# ============================================================================
# RA ANALYSIS
# ============================================================================

# 5b. Filter significant RA results
sig_targets_ra <- lmTest_de$modelStats %>%
  filter(DiseaserheumatoidArthritis_pval_FDR < 0.05) %>%
  pull(target)

sig_targets_ra_up <- lmTest_de$modelStats %>%
  filter(DiseaserheumatoidArthritis_pval_FDR < 0.05,
         DiseaserheumatoidArthritis_coef > 0) %>%
  pull(target)

sig_targets_ra_down <- lmTest_de$modelStats %>%
  filter(DiseaserheumatoidArthritis_pval_FDR < 0.05,
         DiseaserheumatoidArthritis_coef < 0) %>%
  pull(target)

# 6b. Get RA and normal samples
ra_samples <- metadata.a %>%
  filter(Disease %in% c("normal", "rheumatoidArthritis")) %>%
  pull(sampleName)

# 7b. Create RA volcano plot and save as PDF
volcanoPlot(
  coefs = lmTest_de$modelStats$DiseaserheumatoidArthritis_coef,
  p_vals = lmTest_de$modelStats$DiseaserheumatoidArthritis_pval_FDR,
  target_labels = lmTest_de$modelStats$target,
  title = paste0("Rheumatoid Arthritis (RA) (n=", n_ra, ") \n vs Normal (n=", n_normal, ")"),
  plot_name = "volcano_plot_ra_vs_normal.pdf",
  data_dir = "figures",
  plot_width = 6,
  plot_height = 5
)

# 8b. Create RA heatmap and save as PDF
h_ra <- generate_heatmap(
  data = data.a$merged$Data_NPQ,
  sampleInfo = metadata_rename,
  sampleName_var = "sampleName",
  sample_subset = ra_samples,
  target_subset = sig_targets_ra,
  annotate_sample_by = c("Disease", "Sample Matrix", "Lab"),
  output_dir = "figures",
  plot_name = "heatmap_ra_vs_normal.pdf",
  plot_width = 8,
  plot_height = 6
)

# 9b. Create RA PCA and save as PDF
p_ra <- generate_pca(
  data = data.a$merged$Data_NPQ,
  plot_title = "PCA: RA vs Normal\nSignificant DE Targets",
  sampleInfo = metadata_rename,
  sampleName_var = "sampleName",
  sample_subset = ra_samples,
  target_subset = sig_targets_ra,
  annotate_sample_by = "Disease",
  output_dir = "figures",
  plot_name = "pca_plot_ra_vs_normal.pdf",
  plot_width = 5,
  plot_height = 4
)

# 10b. Create upregulated RA boxplots and save as PDF
boxplot_ra_up <- data.long %>%
  filter(Target %in% sig_targets_ra_up,
         SampleName %in% ra_samples) %>%
  ggplot(aes(x = `Disease Type`, y = NPQ, fill = `Disease Type`)) +
  geom_boxplot() +
  facet_wrap(~ Target, scales = "free_y") +
  labs(title = paste0("Upregulated Significant Differential Expression Targets - RA (n=", n_ra, ") vs Normal (n=", n_normal, ")"),
       subtitle = "with FDR-adjusted p < 0.05") +
  theme_minimal() +
  theme(strip.text = element_text(size = 11))

ggsave(
  filename = "boxplot_ra_upregulated.pdf",
  plot = boxplot_ra_up,
  device = "pdf",
  path = "figures",
  width = 12,
  height = 10
)

# 11b. Create downregulated RA boxplots and save as PDF
boxplot_ra_down <- data.long %>%
  filter(Target %in% sig_targets_ra_down,
         SampleName %in% ra_samples) %>%
  ggplot(aes(x = `Disease Type`, y = NPQ, fill = `Disease Type`)) +
  geom_boxplot() +
  facet_wrap(~ Target, scales = "free_y") +
  labs(title = paste0("Downregulated Significant Differential Expression Targets - \nRA (n=", n_ra, ") vs Normal (n=", n_normal, ")"),
       subtitle = "with FDR-adjusted p < 0.05") +
  theme_minimal() +
  theme(strip.text = element_text(size = 11),
        axis.text.x = element_text(angle = 45, hjust = 1))

ggsave(
  filename = "boxplot_ra_downregulated.pdf",
  plot = boxplot_ra_down,
  device = "pdf",
  path = "figures",
  width = 4,
  height = 3
)

# ============================================================================
# COMPARATIVE ANALYSIS AND EXPORT
# ============================================================================

# 13. Analyze overlap between diseases
shared_targets <- intersect(sig_targets_sle, sig_targets_ra)
sle_specific <- setdiff(sig_targets_sle, sig_targets_ra)
ra_specific <- setdiff(sig_targets_ra, sig_targets_sle)

# 14. Export all results to CSV
write_csv(lmTest_de$modelStats, "results/all_de_results.csv")

# Export SLE results
write_csv(
  lmTest_de$modelStats %>% filter(target %in% sig_targets_sle),
  "results/sig_sle_proteins.csv"
)

# Export RA results
write_csv(
  lmTest_de$modelStats %>% filter(target %in% sig_targets_ra),
  "results/sig_ra_proteins.csv"
)

# Export overlap results
write_csv(
  data.frame(target = shared_targets),
  "results/shared_sle_ra_proteins.csv"
)

# 15. Print comprehensive summary
cat("\n========================================\n")
cat("DIFFERENTIAL EXPRESSION SUMMARY\n")
cat("========================================\n\n")

cat("Quality Control:\n")
cat("  Targets passing detectability threshold:", length(targets_passed), "\n\n")

cat("SLE vs Normal:\n")
cat("  Total significant proteins:", length(sig_targets_sle), "\n")
cat("  Upregulated:", length(sig_targets_sle_up), "\n")
cat("  Downregulated:", length(sig_targets_sle_down), "\n\n")

cat("RA vs Normal:\n")
cat("  Total significant proteins:", length(sig_targets_ra), "\n")
cat("  Upregulated:", length(sig_targets_ra_up), "\n")
cat("  Downregulated:", length(sig_targets_ra_down), "\n\n")

cat("Disease Comparison:\n")
cat("  Shared significant targets:", length(shared_targets), "\n")
cat("  SLE-specific targets:", length(sle_specific), "\n")
cat("  RA-specific targets:", length(ra_specific), "\n\n")

cat("Output files created in:\n")
cat("  - figures/  (all plots as PDFs)\n")
cat("  - results/  (all statistical results as CSVs)\n")
cat("========================================\n")
